In Bangor, where the Ordovician and Cambrian rock of Snowdonia meets deep glacial deposits along the Menai Strait, assuming uniform ground motion is a design risk we see too often. Base isolation seismic design changes that, decoupling the superstructure from ground movement to reduce force transfer by up to 70%. The city’s varied profile—from exposed rock in Upper Bangor to soft alluvium near the pier—demands a site-specific approach aligned with BS EN 1998-1 and the UK National Annex. Our team has worked on isolation schemes across North Wales, integrating MASW profiling for Vs30 mapping and seismic microzonation studies to confirm ground motion inputs before selecting isolator properties. The result is a design that works with Bangor’s geology, not against it.
Decoupling a building from ground motion in Bangor means designing for rock, till, and Strait-side clay—often on a single site—with the same isolator system.
Regional considerations

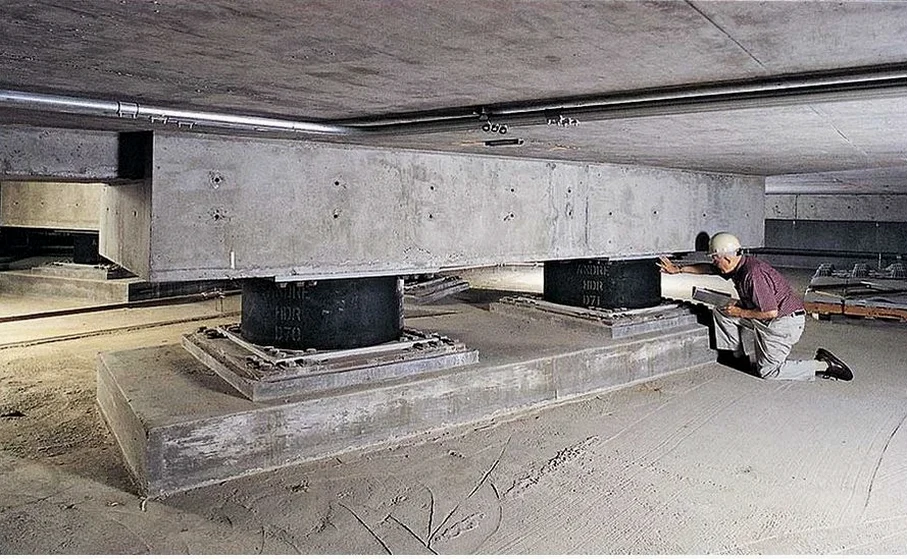

The physical assembly that makes isolation work—laminated rubber bearings with steel shim reinforcement, manufactured to ISO 22762—is deceptively simple. The risk sits in the interface: if the moat cover detailing fails, a supposedly isolated building in Bangor’s high-rainfall climate becomes a water-ingress problem within two winters. We’ve seen schemes where the isolator inspection gallery, designed for a dry London basement, flooded within months on a Gwynedd slope. Beyond moisture, the biggest vulnerability is torsion from asymmetric placement. On Bangor’s constrained infill plots, where the building mass is offset by a car park cut into the hill, the centre of rigidity shifts enough to amplify displacement demands on the downhill isolators by up to 30%. We address this with nonlinear time-history analysis in SAP2000 or ETABS, running the full suite of UK-specific ground motion records scaled to the site’s Vs30 profile. Skipping the 3D torsion check because ‘the code allows equivalent static’ is a gamble that doesn’t pay off on Bangor’s hillsides.
Q&A
What does base isolation design cost for a typical Bangor project?
For a medium-scale building in Bangor, the full design package—from feasibility and seismic hazard assessment through nonlinear time-history analysis to isolator specification and construction-phase testing—typically ranges between £3,560 and £6,340. The final figure depends on the number of ground motion records analysed, the complexity of the superstructure model, and whether the site’s soft soils near the Menai Strait require a 3D basin-effects study. Projects on the rock slopes of Upper Bangor usually sit at the lower end of that range because displacement demands are smaller and the hazard assessment is more straightforward.
Is base isolation mandatory for new buildings in Bangor under UK regulations?
No—the UK Building Regulations and BS EN 1998-1 do not mandate base isolation for any specific building type or location, including Bangor. The decision to use isolation is performance-driven: it becomes the recommended solution when an Importance Class III or IV structure (hospital, emergency centre, critical university research facility) must remain operational after a rare seismic event, or when the cost of repairing conventional damage exceeds the premium for isolation. Our team provides a comparative life-cycle cost analysis to help the client and structural engineer decide.
How do you handle the interface between the isolators and Bangor’s typical shallow rock foundations?
Shallow rockhead—common in central Bangor—is actually an advantage for isolation. We design a rigid basement slab or a grid of ground beams that transfer the concentrated isolator loads directly into the rock, minimising differential settlement. The key detail is the moat cover: on sloped sites we specify a drained, accessible perimeter gallery that prevents the water accumulation typical of North Wales rainfall. The connection between the isolator base plate and the reinforced concrete substructure follows the grouted-anchor detail in BS EN 15129, with a tolerance specification tight enough to avoid eccentric loading during the bearing’s 50-year design life.
